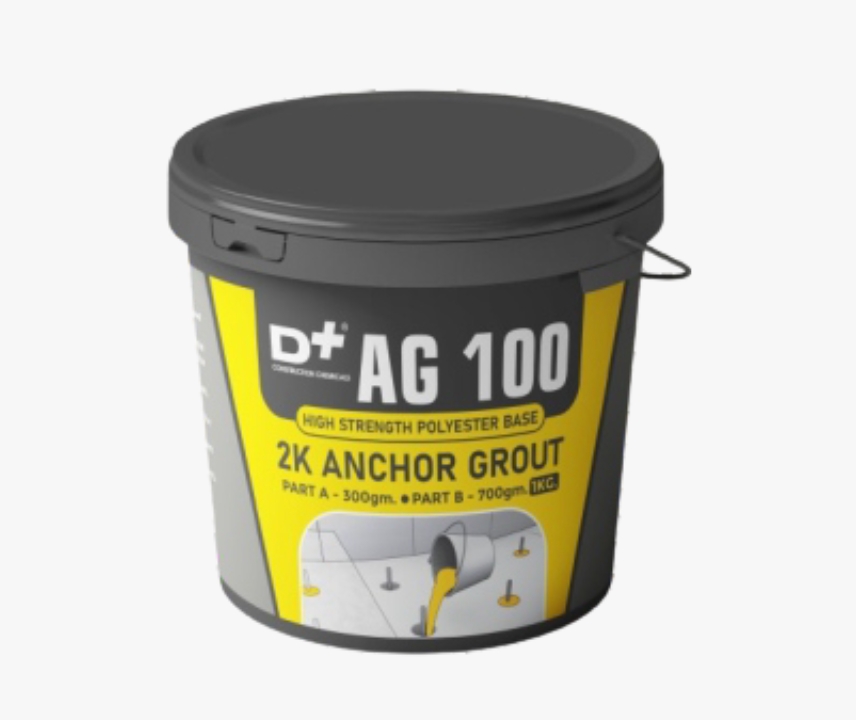

D+ ANCHOR GROUT AG 100 is a synthetic resin-based, two-part anchor grout supplied as a pre-measured resin grout system. It consists of a resin component and a hardening compound with fillers. After hardening, the grout develops high mechanical properties. It is designed for anchoring applications where the difference between the hole diameter and bar diameter is up to 25 mm.

The product is designed for high-strength, corrosion-resistant anchoring of bolts and bars from 12–25 mm diameter into concrete, rock, masonry or brickwork where high installation speed and early application of load are required. It can also be used for permanent installation of reinforcement starter bars, foundation bolts, base plates, barriers, safety fences, railway tracks, tieback anchors, reinforcement dowelling, abutments, ground anchors for towers and cranes, dock sills, stainless-steel handrails and pillars.

Advantages

• Rapid strength gain.
• Vibration resistant.
• Corrosion resistant.
• Non-expansive.
• Can be placed under water.
• High mechanical properties after hardening.
• Suitable for high-strength anchoring.
• Suitable where early loading is required.
• Suitable for permanent anchoring applications.

Application

D+ ANCHOR GROUT AG 100 is suitable for:

• Reinforcement starter bars
• Foundation bolts
• Base plates
• Barriers
• Safety fences
• Railway tracks
• Tieback anchors
• Reinforcement dowelling
• Abutments
• Ground anchors for towers
• Crane anchors
• Dock sills
• Stainless-steel handrails
• Pillars
• High-strength anchoring of bolts and bars into:
  • Concrete
  • Rock
  • Masonry
  • Brickwork

Anchor Size Range

The product is specified for bolts and bars from 12 mm to 25 mm diameter.

Setting / Loading Information

Minimum Hole Depth

The datasheet provides minimum hole-depth recommendations based on bar diameter, hole diameter and concrete strength. Examples include:

The values correspond to the concrete-strength conditions specified in the datasheet.

Consumption / Quantity

For Anchor Grout, the datasheet provides anchoring estimation information rather than a general sq.ft. coverage rate.

It states that the estimation tables allow for a 25% wastage factor and give the number of bolts that can be fixed at a 200 mm hole depth using a 2.5-litre pack. For very old concrete, masonry or brickwork, the wastage factor should be increased.

The grout quantity should therefore be calculated according to the hole diameter, bolt/bar diameter and hole depth.
